BW256是一款WiFI6 SOC模块,是飞易通公司2023年主打产品,Low‐Energy 2.4/5GHz Wi‐Fi6/BT5.2 SoC

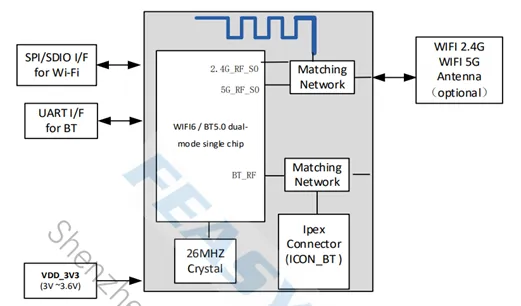

![BW256 WiFi SOC模组架构图](https://www.feasycom.com.cn/wp-content/uploads/2023/11/jiagou.webp)

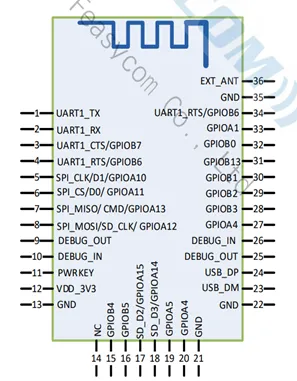

![BW256 WiFi SOC模组引脚图](https://www.feasycom.com.cn/wp-content/uploads/2023/11/yinjiao.webp)
1.1 Wi‐Fi Features
CMOS single-chip fully-integrated RF Modem and MAc
Wi-Fi 6 support 2.4GHz/5GHz Frequency band
The highest data rate is 286.8Mbps@TXand229.4Mbps@RX,and the bandwidth is 20/40MHz
RX sensitivity under 11b 1M mode-98dBm
Tx power up to 20dBm in 11b mode up to 18dBm in HT/VHT/HE40 MCS7 mode
Support STA,APWi-Fi Direct mode at the same time
Support STBC,beamforming
Support Wi-Fi6 TWT
Support two NAVs,buffer reportspace reuse
Multi-BSSID, power saving in PPDU
Support LDPC
Support MU-MIMO,OFDMA
Support DCM,medium code,UORA
Support WEP/WPA/WPA2/WPA3-SAE Personal
MFP Frequency band
1.2 BTDM 5.2 Features
Supports all the mandatory and optional features
of Bluetooth 2.1+EDR/3.0/4.x/5
Supports advanced master and slave topologies
1.3 CPU Features
Integrated Cortex-M4F CPU with MPU and FPU
CPU speed up to 480Mhz
On-chip memory includes 992KB SRAM and 752KB ROM
Supports SDIO/SPI/USB2.0
Integrated hardware crypto accelerator
AES/RSA/HASH/ECC
Integrated True Random Number Generator
Support external OPI SDR/DDR PSRAM
Integrated 128mbits SPI flash
Integrated UART/12S/12C/PWM/SPI/SDMMC
Integrated watchdog Support free ROTS
主要应用如下:
主要应用于打印机、储能设备、车载设备、窗帘控制器、带WIFI智能设备等。
案例分享:

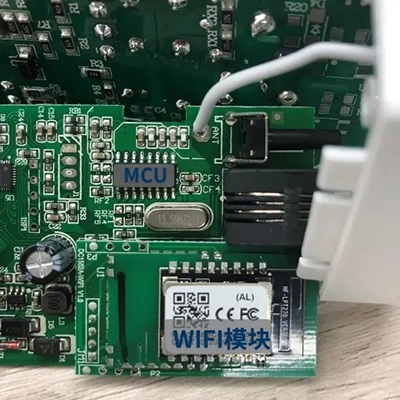

![](https://www.feasycom.com.cn/wp-content/uploads/2023/11/fangan.webp)
模块:2.4G+BLE5.0
MCU: HC32L170FAUA-QFN32TR
合计成本:RMB 30元

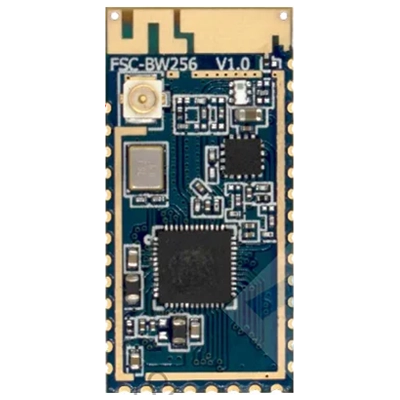

![](https://www.feasycom.com.cn/wp-content/uploads/2023/11/BW256.webp)
模块:FSC-BW256 SOC
功能:MCU+WIFI6 2.4GHz/5GHz+ BT5.2
成本:量大价格公司面议
特点:协议栈集成功能多,系统成本更低
